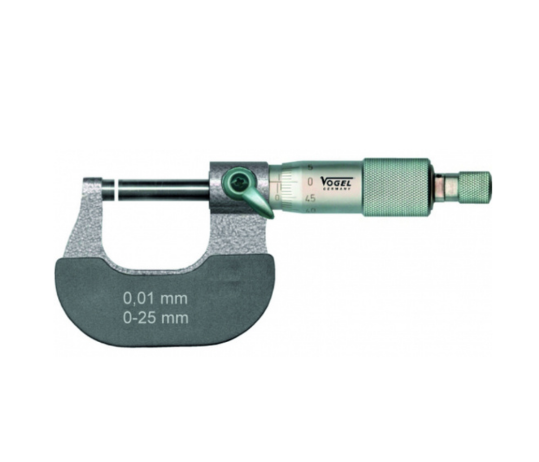

WOGEL External Micrometer DIN 863 – 0 - 25 mm | High Precision | Measuring Tool

WOGEL External Micrometer DIN 863 – 0 - 25 mm | High Precision | Measuring Tool

Product No.: 231351
Measuring Range: 0 - 25 mm
Resolution: 0.01 mm
Max. Total Accuracy: ± 0.004 mm
Thread: Ø 18 mm
Thread Pitch: 0.5 mm
Weight: 0.258 kg per piece

Product Description:

The WOGEL External Micrometer DIN 863 is a precision measuring tool designed for high-accuracy external measurements in engineering, machining, and quality control. Built to meet standard industry expectations, this micrometer provides reliable, precise results with every measurement.

• Measuring Range: 0 - 25 mm, with resolution to 0.01 mm for fine measurement accuracy
• High Precision: Max. total accuracy of ± 0.004 mm, ensuring precise measurements every time
• Durable Construction: Designed with high-quality materials for long-lasting performance in demanding environments
• Threaded Components: Ø 18 mm thread with a 0.5 mm pitch for secure, consistent use
• Easy-to-Read: Clear measurements with the standard DIN 863 compliance
• Dimensions:
  • A: 6 mm
  • B: 24 mm
  • D: 3.0 mm
  • L: 32 mm

Perfect for machining, metalworking, and quality control tasks, the WOGEL External Micrometer guarantees consistent, accurate measurements to meet your precision measurement needs.
