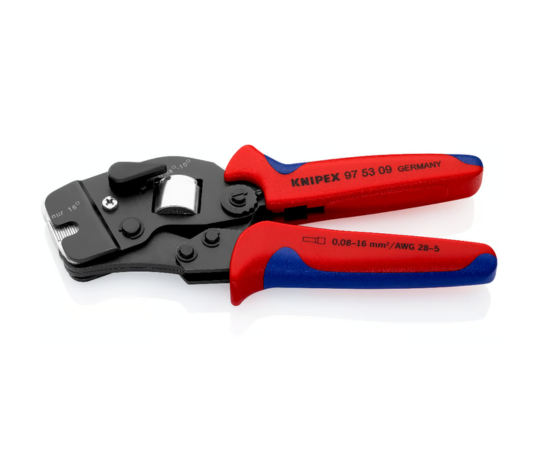

KNIPEX 97 53 09 Self-Adjusting Crimping Pliers

KNIPEX 97 53 09 Self-Adjusting Crimping Pliers for Wire Ferrules (Front Loading)

Effortless Crimping with Flexible Range Control

The KNIPEX 97 53 09 offers professional-grade crimping performance with added flexibility. Built for crimping wire ferrules according to DIN 46228 Parts 1 and 4, this tool features a selector lever to toggle between standard (0.08 – 10 mm²) and extended (16 mm²) crimping ranges—perfect for a broader scope of electrical and automation work.

Key Features:

• Self-adjusting to wire ferrule size — eliminates the risk of incorrect crimps
• Frontal insertion for precise alignment and accessibility
• Reliable, repeatable crimping quality via integrated ratchet mechanism (unlockable)
• Factory-calibrated pressure for consistent and precise crimps
• High crimping force with minimal hand effort, thanks to optimized lever action
• Selector lever allows switching between two crimping ranges:
  • 0.08 – 10 mm²
  • 16 mm²
• Lightweight, ergonomic design for fatigue-free operation
• UL-approved when used with KNIPEX wire ferrules

Technical Specifications:

• Article Number: 97 53 09
• Length: 190 mm
• Weight: 486 g
• Capacity: 0.08 – 10 mm² and 16 mm² (AWG 28 – 6)
• Crimp Profiles: 1 universal profile
• Head Finish: Burnished
• Handle Type: Multi-component handles
• Dimensions: 190 x 20 x 23 mm
• Application: Single and twin wire ferrules
• REACH Compliant: Contains SVHC
• RoHS Compliant: Not applicable
