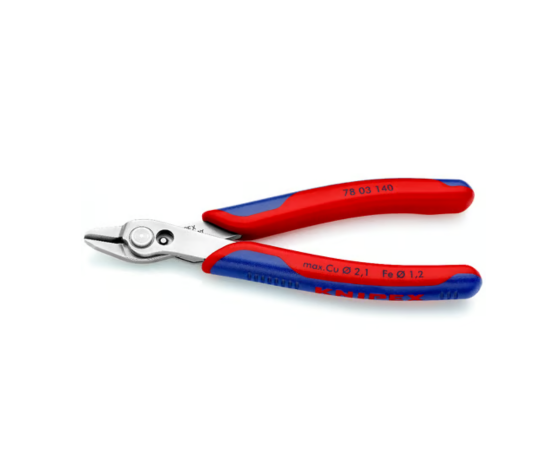

KNIPEX 78 03 140 Electronic Super Knips

KNIPEX 78 03 140 Electronic Super Knips® XL – Precision Cutting for Electronics & Fine Mechanics

The KNIPEX 78 03 140 Electronic Super Knips® XL is specially designed for ultra-fine, precision cutting work in electronics, fine mechanics, and cable management. With an extended 15 mm longer design, it offers greater stability and cutting performance while maintaining the legendary precision of the Super Knips® series.

Key Features:

• XL Design: 15 mm longer for increased stability and enhanced cutting capacity.
• Ultra-Fine Precision: Ground, sharp cutting edges without bevel for highly accurate flush cuts.
• Shear Cut Technology: Micro cutting edge misalignment ensures clean cuts even on the thinnest wires while extending tool life.
• Precision Tip Design: Precisely shaped tips allow close surface cuts on wires starting from Ø 0.2 mm.
• Durable Surgical Steel: Made of INOX stainless surgical steel for maximum durability and corrosion resistance.
• Comfortable Handling: Multi-component handles with smooth movement for fatigue-free work, assisted by an opening spring and limiter.
• Low Operator Fatigue: Extremely smooth joint action thanks to stainless steel rivet.
• Cutting Edge Hardness: Approx. 54 HRC for reliable long-term performance.
• Cutting Capacities:
• Soft wire: Ø 0.2 – 2.0 mm
• Medium-hard wire: Ø 1.2 mm

Technical Specifications:

• Article No.: 78 03 140
• EAN: 4003773081647
• Head Finish: Polished
• Handles: Multi-component grips
• Weight: 85 g
• Dimensions: 140 x 50 x 15 mm
• Jaw Length (B): 12.3 mm
• Jaw Thickness (Joint, D): 9.2 mm
• Head Width (A): 15.7 mm
• Compliance: REACH compliant (no SVHC), RoHS not applicable

Ideal for electronics assembly, fine mechanics, circuit board work, and precision cable tie trimming.
